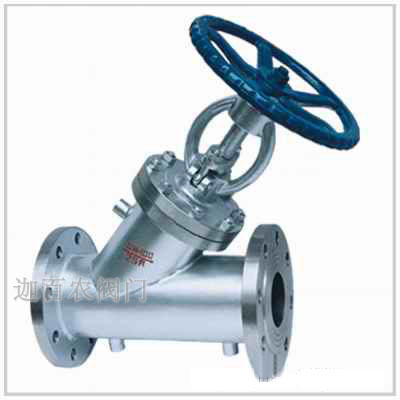

■产品简介: |
|
产品型号∶BJ45H-16/64 |
| ■主要技术参数和性能指标: |
| 型号Type |
公称压力PN(MPa) NominalPressure |
试验压力PS（MPa）Test Pressure |
工作温度(℃)Working Temperature |
适用介质Applicable Medium |
工作蒸汽压力Work steam Pressure |
| 壳体Shell |
密封Seal |
| BJ45(H.W.Y)-25P |
2.5 |
3.75 |
2.75 |
≤200 |
尿素、硝酸类 Ureophil、Nitric Acid |
≤1.3 |
| BJ45(H.W.Y)-40P |
4.0 |
6.0 |
4.4 |
| BJ45(H.W.Y)-64P |
6.4 |
9.0 |
6.6 |
尿素、醋酸类 Ureophil、Acetrc Acid |
| BJ45(H.W.Y)-25R |
2.5 |
3.75 |
2.75 |
| BJ45(H.W.Y)-40R |
4.0 |
6.0 |
4.4 |
| BJ45(H.W.Y)-64R |
6.4 |
9.0 |
6.6 | |
| ■主要零件材料： |
| 零件名称Patr Name |
阀体、阀盖Body,Bonnet |
阀瓣Disc |
垫片Swat |
| BJ45(H.W.Y)-25P、BJ45W-40P、 BJ45W-64P |
铬镍钛阀Cr.Ni.TI Steel |
铬镍钛阀+硬质合金Cr.Ni.TI Steel+Carbide Alloy |
聚四氟乙烯 Polytetrafluoroethylene |
| BJ45(H.W.Y)-25R、BJ45W-40R、 BJ45W-64R |
铬镍钼钛阀Cr.Ni.Mo.TI Steel |
铬镍钼钛阀+硬质合金Cr.Ni.Mo.TI Steel+Carbide Alloy |
聚四氟乙烯 Polytetrafluoroethylene | |
|

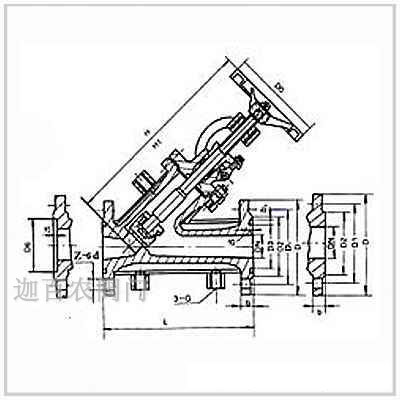

■主要外形尺寸： |
| 公称压力PN(MPa) Nominal Pressure |
公称通径DN(mm) Nominal Diameter |
尺寸(mm)Dimensions |
| L |
D |
D1 |
D2 |
D3 |
b1 |
f0 |
b |
D6 |
3-G |
Z-φd |
H |
H1 |
D0 |
|
2.5
4.0 |
15 |
170 |
105 |
75 |
55 |
35 |
8 |
4 |
16 |
51 |
3/8 |
|
250 |
262 |
120 |
| 20 |
190 |
115 |
85 |
65 |
42 |
8 |
4 |
16 |
58 |
3/8 |
|
292 |
308 |
140 |
| 25 |
210 |
135 |
100 |
78 |
50 |
8 |
4 |
18 |
66 |
3/8 |
|
340 |
375 |
160 |
| 32 |
230 |
145 |
110 |
85 |
60 |
8 |
4 |
18 |
76 |
1/2 |
|
338 |
375 |
160 |
| 40 |
260 |
160 |
125 |
100 |
72 |
8 |
4 |
20 |
88 |
1/2 |
|
360 |
386 |
160 |
| 50 |
300 |
180 |
145 |
120 |
94 |
8 |
4 |
22 |
110 |
1/2 |
|
410 |
450 |
240 |
| 65 |
340 |
195 |
160 |
135 |
105 |
8 |
4 |
22 |
121 |
1/2 |
|
440 |
485 |
240 |
| 80 |
380 |
230 |
190 |
160 |
128 |
11 |
4.5 |
24 |
150 |
1/2 |
|
540 |
600 |
280 |
| 100 |
430 |
270 |
220 |
188 |
154 |
11 |
4.5 |
28 |
176 |
1/2 |
|
560 |
625 |
320 |
| 125 |
490 |
300 |
250 |
218 |
182 |
11 |
4.5 |
30 |
204 |
1/2 |
|
625 |
737 |
360 |
| 150 |
550 |
330 |
280 |
248 |
212 |
11 |
4.5 |
32 |
|
1/2 |
|
720 |
790 |
360 |
| 6.4 |
25 |
235 |
160 |
125 |
82 |
50 |
8 |
4 |
22 |
|
1/2 |
|
340 |
375 |
160 |
| 32 |
260 |
165 |
125 |
88 |
60 |
8 |
4 |
24 |
|
1/2 |
|
358 |
383 |
160 |
| 50 |
300 |
200 |
160 |
130 |
|
|
4 |
26 |
110 |
1/2 |
|
410 |
450 |
240 |
| 65 |
340 |
210 |
170 |
140 |
|
|
4 |
30 |
121 |
1/2 |
|
485 |
510 |
240 |
| 100 |
430 |
270 |
220 |
188 |
154 |
11 |
4.5 |
36 |
|
1/2 |
|
610 |
470 |
400 |
| 100 |
415 |
300 |
250 |
218 |
|
|
4.5 |
32 |
150 |
1/2 |
|
610 |
670 |
400 | |
|
■订货须知: |
| ⑴产品型号与名称 ⑵公称通径DN ⑶额定流量系数KV ⑷公称压力和压差 ⑸阀体和阀内组件材料 ⑹流量特性 ⑺适用温度 ⑻电源电压和控制信号 ⑼是否带附件 |
