  当前位置:首页--产品展示--衬胶衬氟阀--聚全氟衬里蝶阀

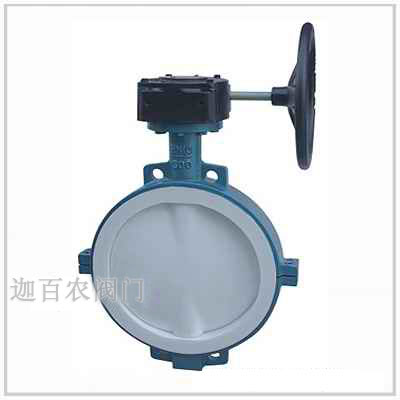

  产品全称:聚全氟衬里蝶阀|上海迦百农阀门制造有限公司


  产品详细:
主要技术参数和性能指标:
公称压力:Nominal pressure: 1.0 Mpa, 1.6 Mpa, 2.5 Mpa(ANSI Class 125, 150lb)
规格:Nominal size: DN50~DN600 (2”-24”)
适用温度Suitable temperature: -40℃~180℃
适用介质Suitable medium: This butterfly valve can be applied in various concentrations of Acid, Alkali, Aqua regia and strong chloridizing etc (except the high-temperature melting alkali metals, element fluorine & chlorine trifluoride).
操作方式operation style: Handle, worm gear, electric, pneumatic, hydraulic.
用途Application: This butterfly valve is mainly used in petroleum, chemical, pharmaceutics, and metallurgy, coker etc corrosive pipeline circulation systems.
口径size
最高使用温度Max. working temperature
最高使用压力 Max. working pressure
试验压力Test pressure
液体Liquid
气体Gas
阀体(水压)Shell(Hydrostatic)
密封(气体)Seal(air)
■主要零件材料:
序号 Sr. No.
名称 Part name
材质 Material
1
阀体 Body
Ductile iron
1a
阀体连接螺钉 connection screw
Alloy steel
2
阀体衬里 Body liner
FEP F46
3
蝶板衬 Disc liner
FEP F46
蝶板 Disc
Cast steel
上轴1 Upper shaft 1
Alloy steel
上轴2 Upper shaft 2
Alloy steel
下轴1 Lower shaft 1
Alloy steel
3a
下轴2 Lower shaft 2
Alloy steel
3b
下轴3 Lower shaft 3
Stainless steel
4
上衬套 Upper bushing
Stainless steel
5
下衬套 Lower bushing
Stainless steel
6
密封环 Sealing ring
PTFE
7
压圈 Press ring
Stainless steel
8
后衬垫 Back bushing
EPDM/Viton
9
弹簧垫Spring washer
Alloy spring steel
10
内六角螺钉Socket head cap screw
Alloy steel
■主要外形尺寸:
口径
size
最高使用温度
Max. working temperature
最高使用压力
Max. working pressure
试验压力
Test pressure
全开放CV值
液体
Liquid
气体
Gas
阀体(水压)
Shell(Hydrostatic)
密封(气体)
Seal(air)
50
180
7
2.5
10.5
3
120
65
120
80
290
100
450
125
800
150
1200
200
2300
250
3800
300
5700
350
6600
400
9000
450
11900
500
14400
600
21000
■订货须知:
⑴产品型号与名称 ⑵公称通径DN ⑶额定流量系数KV ⑷公称压力和压差 ⑸阀体和阀内组件材料 ⑹流量特性 ⑺适用温度 ⑻电源电压和控制信号 ⑼是否带附件
